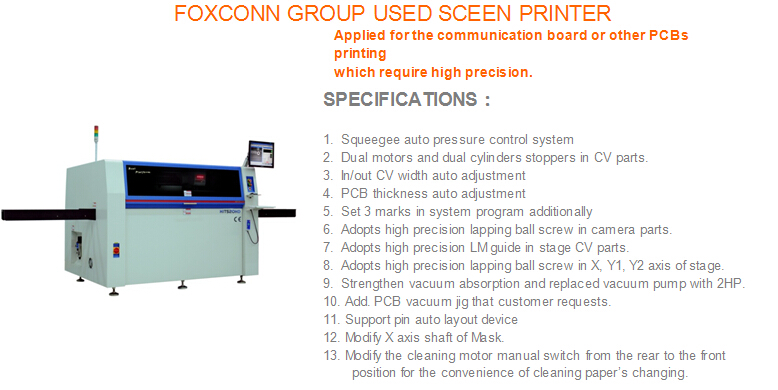

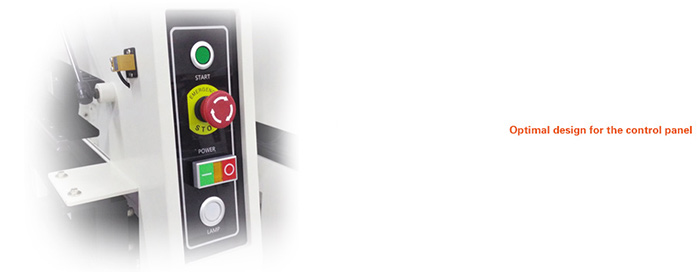

SPECIAL AND EXCELLENT
PERFORMANCE
EQUIPMENT
SPECIFICATION

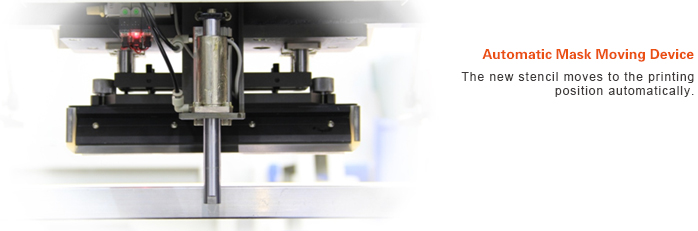

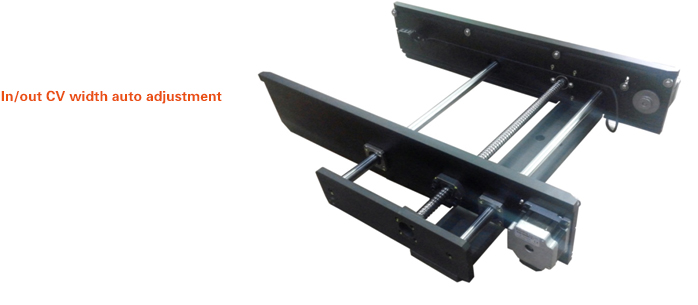

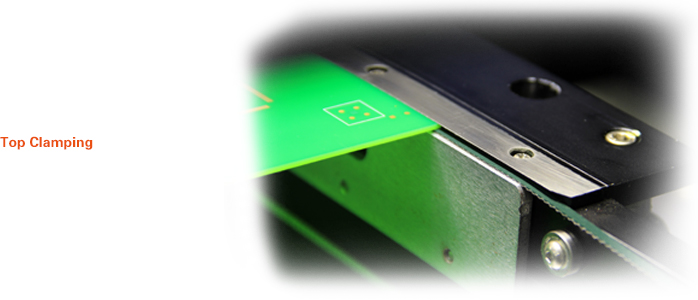

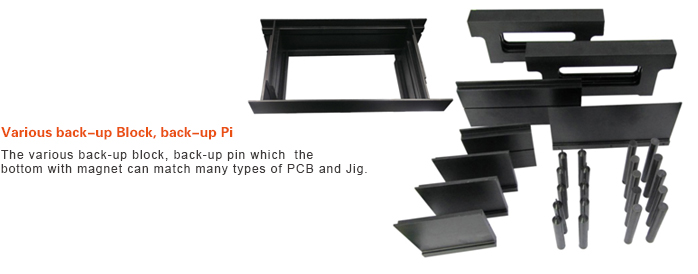

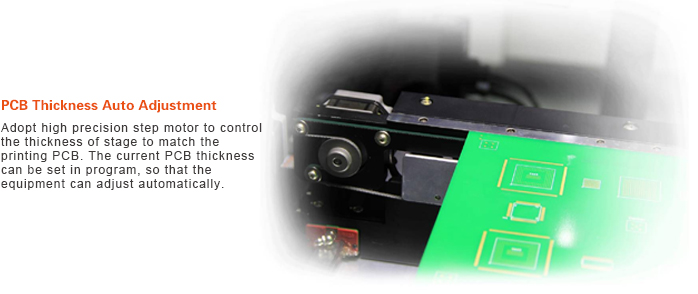

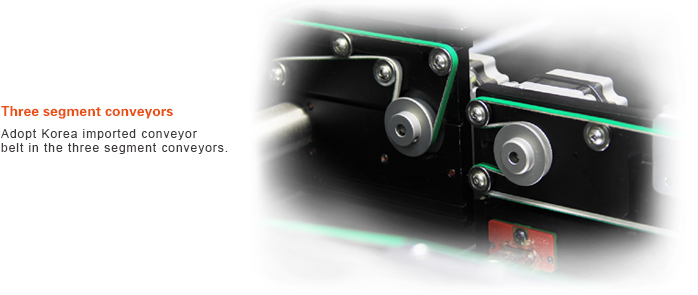

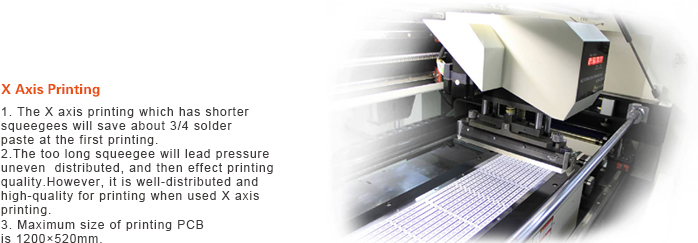

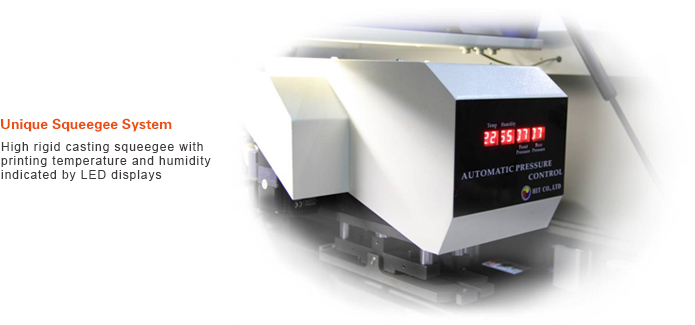

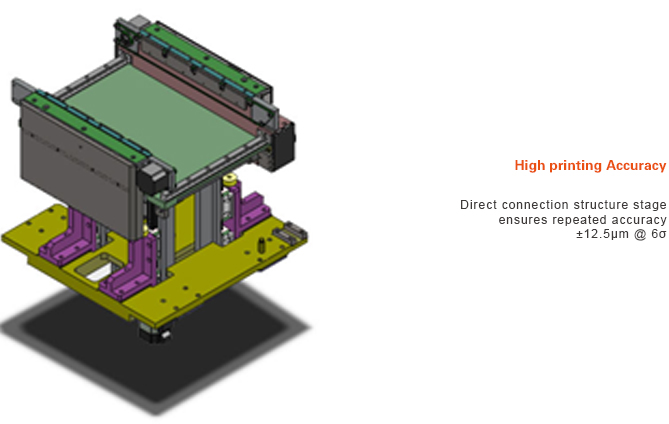

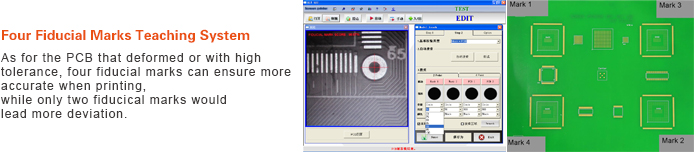

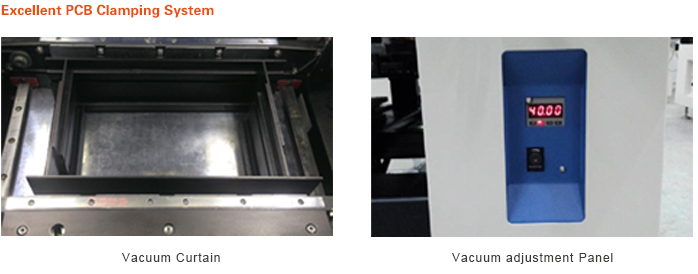

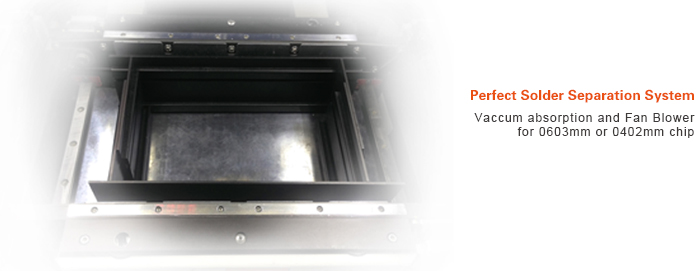

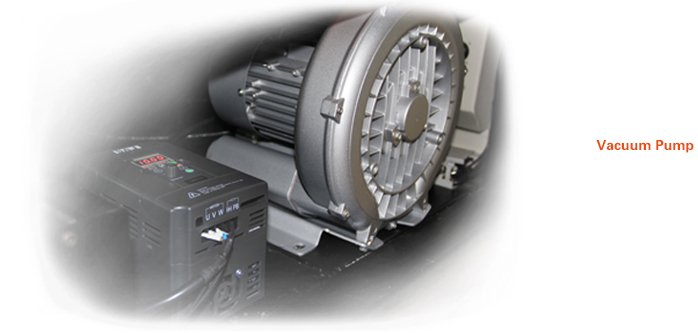

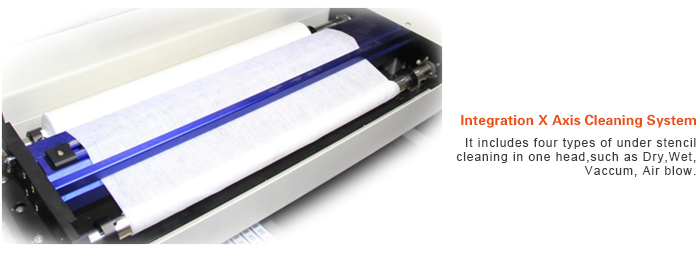

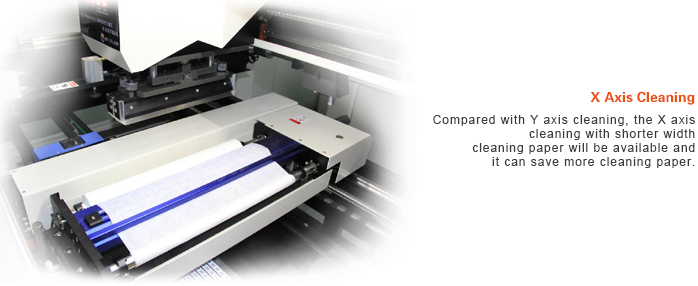

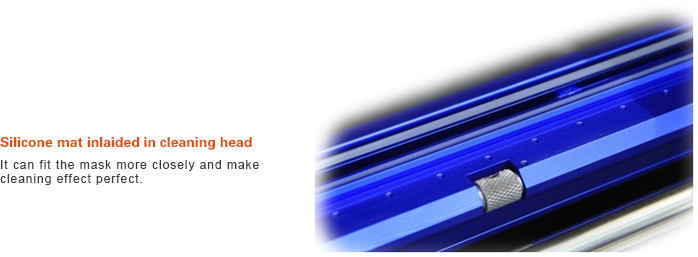

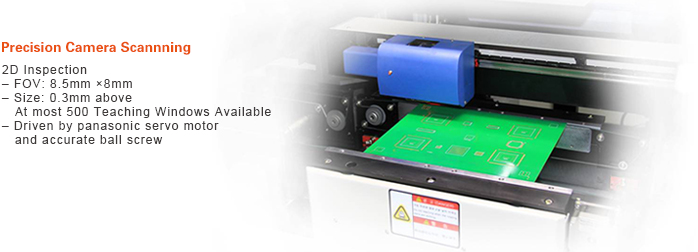

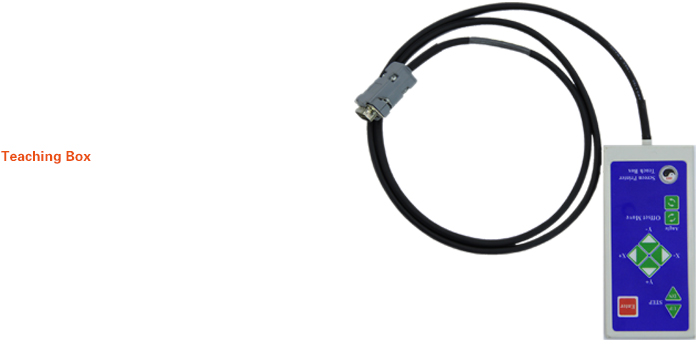

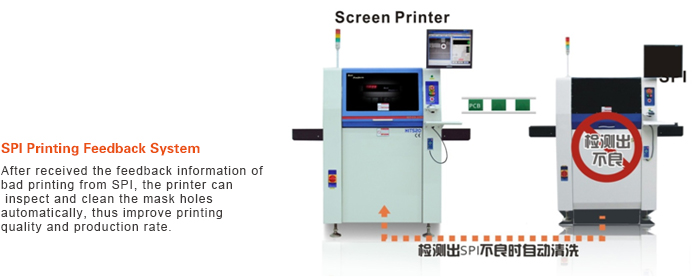

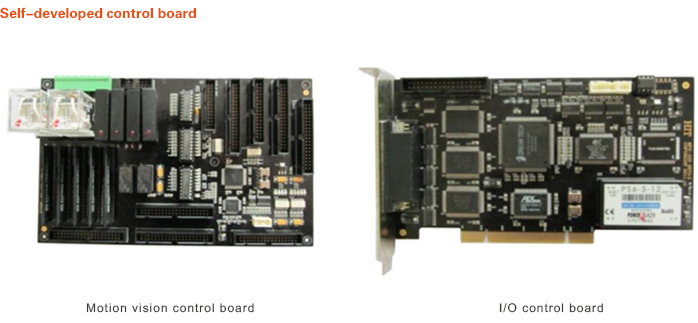

| HIT520Smart | Specifications | |
|---|---|---|
| Mask | Min. size | 736x550 mm |
| Max. size | 1500x736 mm | |
| PCB | Size | 80x80~1200x550 mm |
| Thickness/Weight | 0.4 mm~6 mm / 10kg | |
| Under clearance | 14 mm | |
| Transport direction | left->right/ right->left (Option) | |
| Squeegee | Squeegee type | Metal squeegee/HIT GUN (soplder pump head) |
| Length | 250 mm, 350 mm, 420 mm, 460 mm, 600 mm | |
| Moving direction | X axis moving | |
| Printing | Accuracy/Speed | ±12.5 μm @ 6 sigma/ 1~300mm/s |
| 14s (Excluding printing time) | ||
| Fiducial Mark | Type | User defined |
| Size | 0.5 mm~3 mm | |
| Mark number | Two, Three, Four | |
| Snap off | Type | Normal/Vacuum |
| Speed/Distance | 0.5 mm/s~ 30 mm/s / 0~5 mm | |
| Cleaning System | Type | dry/wet/vacuum/air |
| Cleaning head | Silicone pad | |
| 2D Inspection | Fov Camera | 8.5 mm x 8 mm, CIS 640 x 480 Japan |
| Inspection | solder small or miss | |
| Inspection Size | 0.3 mm, over 0.3 mm | |
| Max Teaching Window | 500 window available | |
| SPI Communication | Type | printing offset and cleaning |
| Air Condition System | PC Control system (option) | |
| Other | Size/Weight | 3824 x 1582 x 1430 mm/ 1200 kg |
| Power supply/Air supply | 220 V± 20V, 2KW 50/60 Hz/ 4~6/cm2 | |
| Operation system | Windows XP, Flash Memory Type HDD |

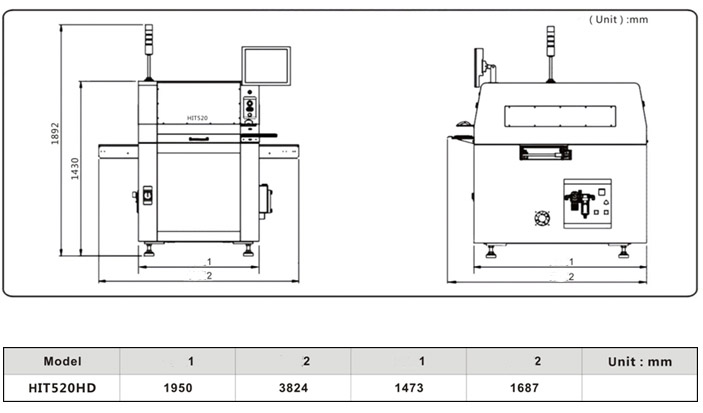

EQUIPMENT SIZE
