ALD 5820S Inline Pre-Reflow AOI

ALD 5820S Inline Pre-Reflow AOI

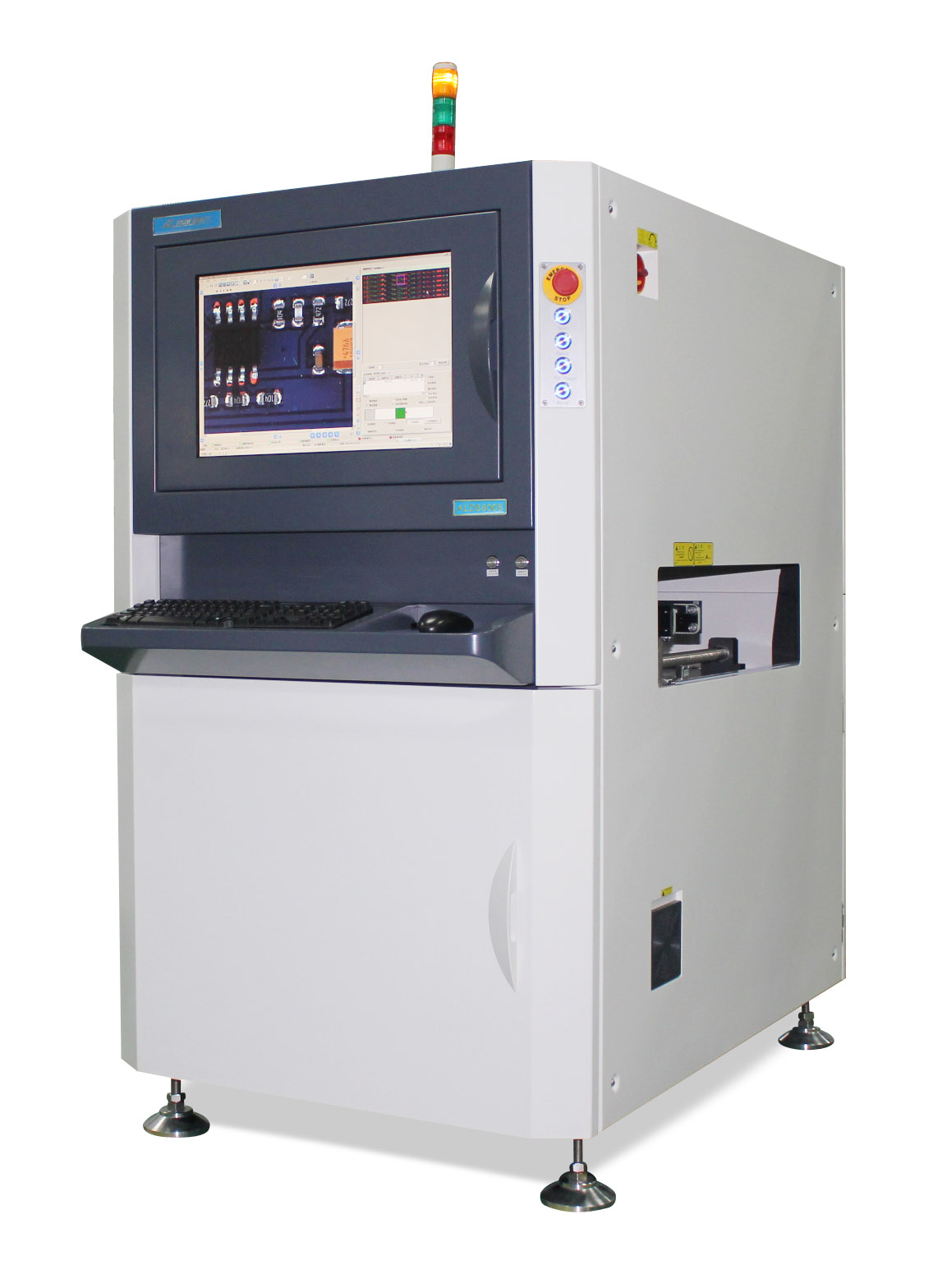

ALeader ALD5820S is a high performance easy to operate AOI system designed to inspect PCB assembly before the reflow. ALD5820S is accurately measures components position and supplies a feedback, which is vital to improve the performance of P&P machines. The system is detecting all placement defects, such as missing, missalignment, billboard, up-side-down, polarity, wrong component, lifted lead and more. In addition ALD5820S has capability of 2D paste inspection.





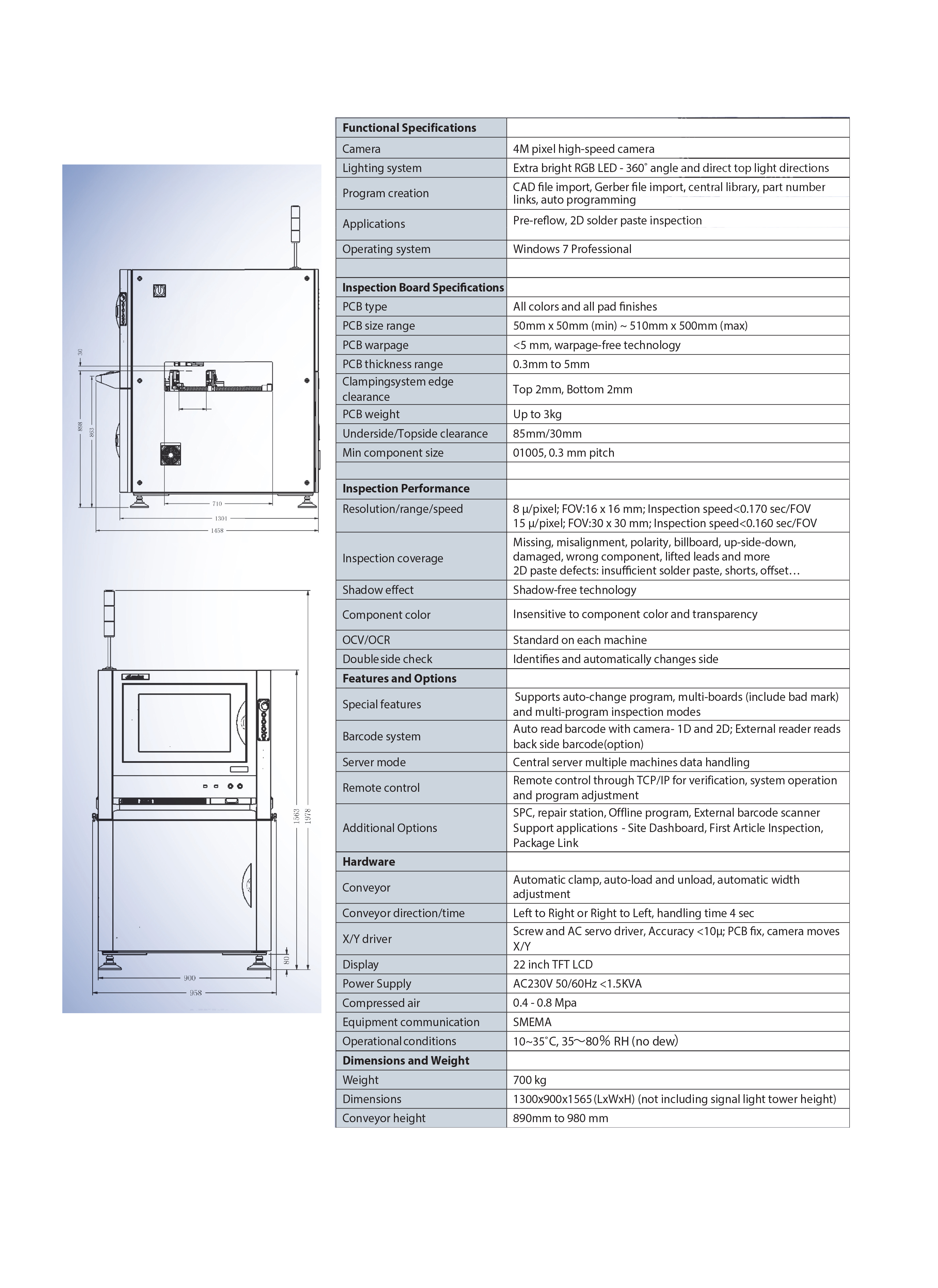

Unique Technologies Implemented in this Model

• Extremely low FA rate, high FPY and no escapes
• Shadow free, warpage free solution, insensitive
to board color
• Fast and accurate inspection and measurement
• Ideal for inspection of 0201 and 01005 components,
0.3 mm pitch
• Fast programming, intuitive user interface
• Effective quality verification
• Process control for defect prevention
• High MTBF, low maintenance cost



ALeader ALD5820S is a high performance easy to operate AOI system designed
to inspect PCB assembly before the reflow.

In common production environment printing and placement processes are the main
contributors to the end line defect rate. ALD5820S is built to detect those defects
before the board will be soldered and the repair will become difficult and expensive.
ALD5800S is accurately measures components position and supplies a feedback,
which is vital to improve the performance of P&P systems.

Supported by the powerful algorithms ALD5820S delivers unprecedented high
speed performance giving no escapes and very low false alarm rate on the most
complicated and challenging PCB assemblies. System performance is not affected
by the shadows or board warpage.

Program creation is simple and straight forward. The system also offers support for
offline programming. Integrated barcode reading capability and various traceability
options, software process control are available. Repair station delivers a clear
image of the defect and good sample allowing fast verification and preventing
operator mistakes.



Aleader catalog 2019
